Specifications
Please reference the specification guide below to help you select the correct solution for your needs.
| MODEL NUMBER |
2000 SERIES |
3000 SERIES |
4000 SERIES |
6000 SERIES |
| FUEL TYPE |
ELECTRIC |
ELECTRIC |
ELECTRIC |
ELECTRIC |

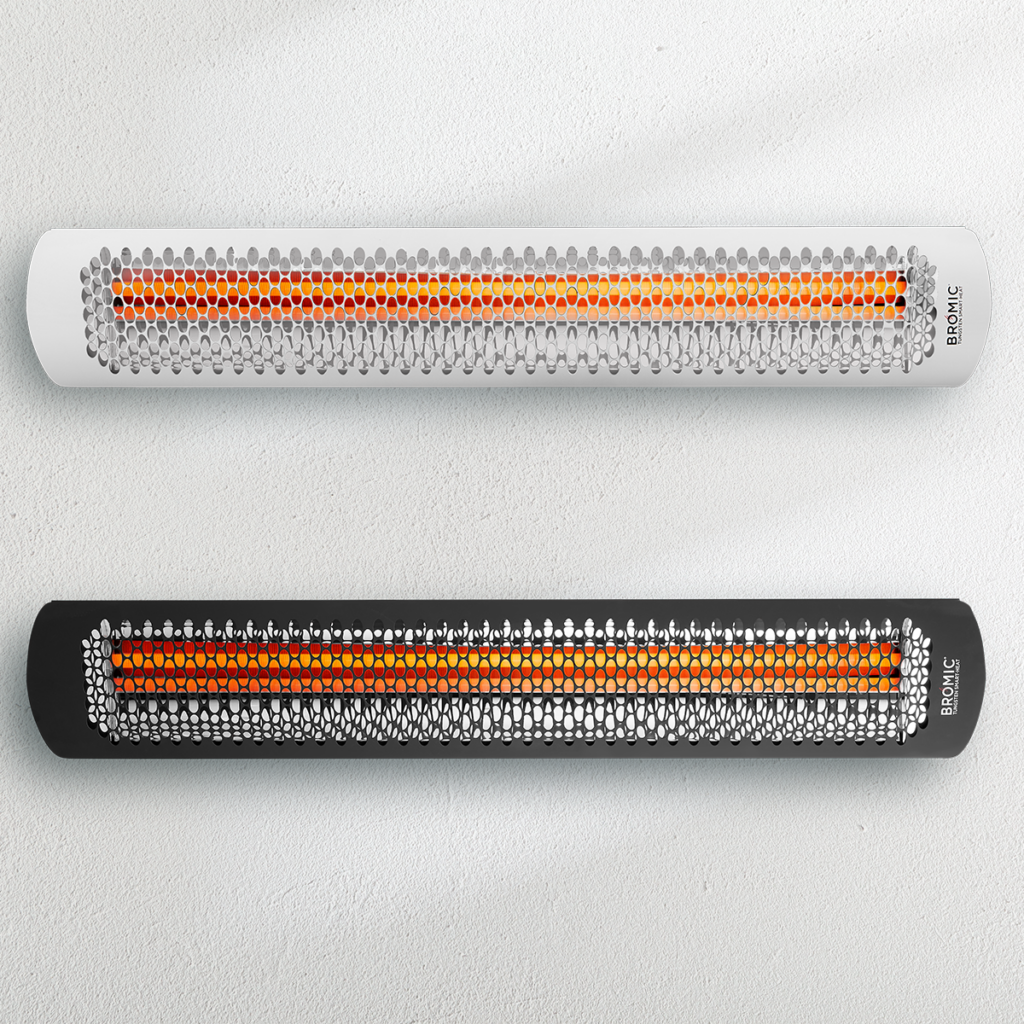

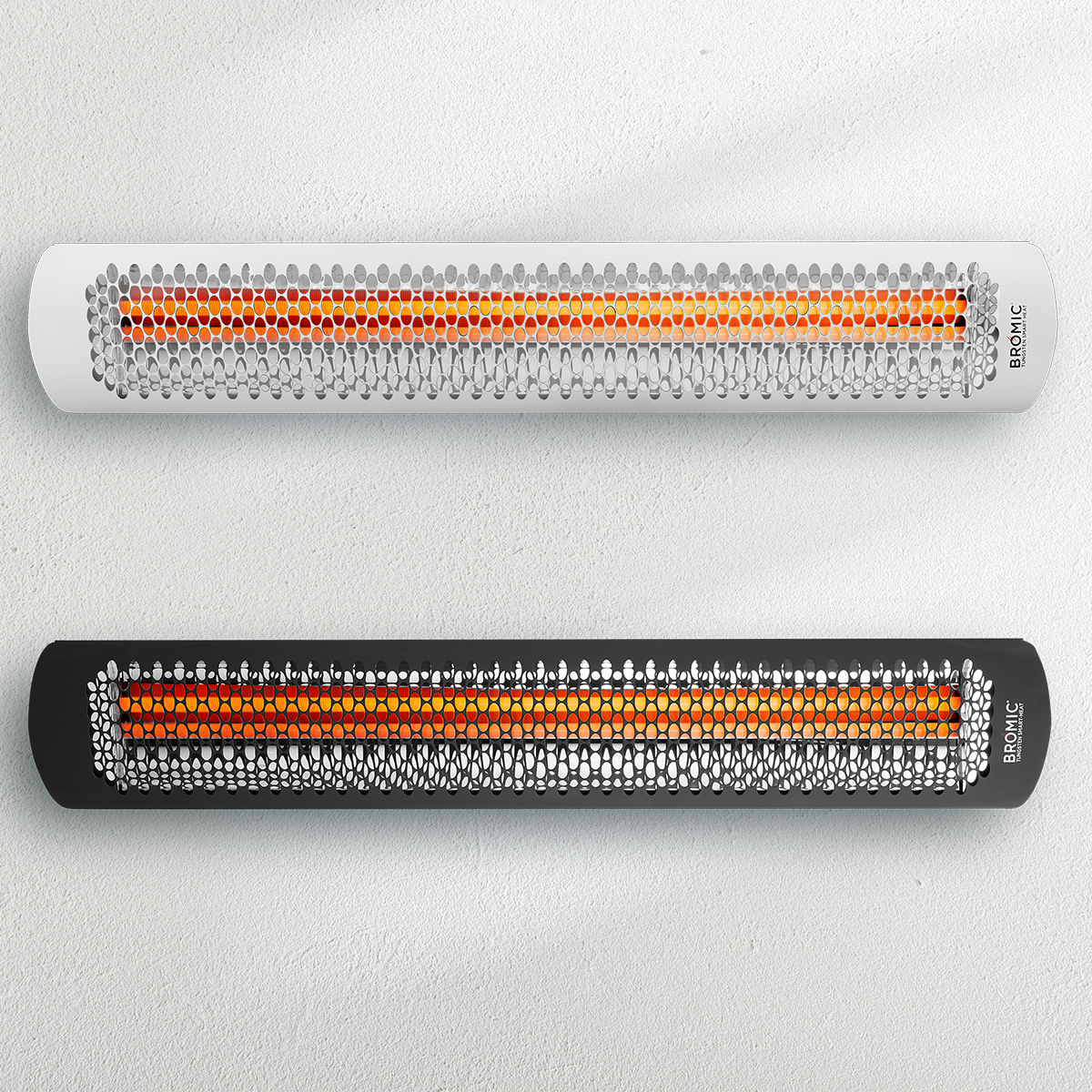

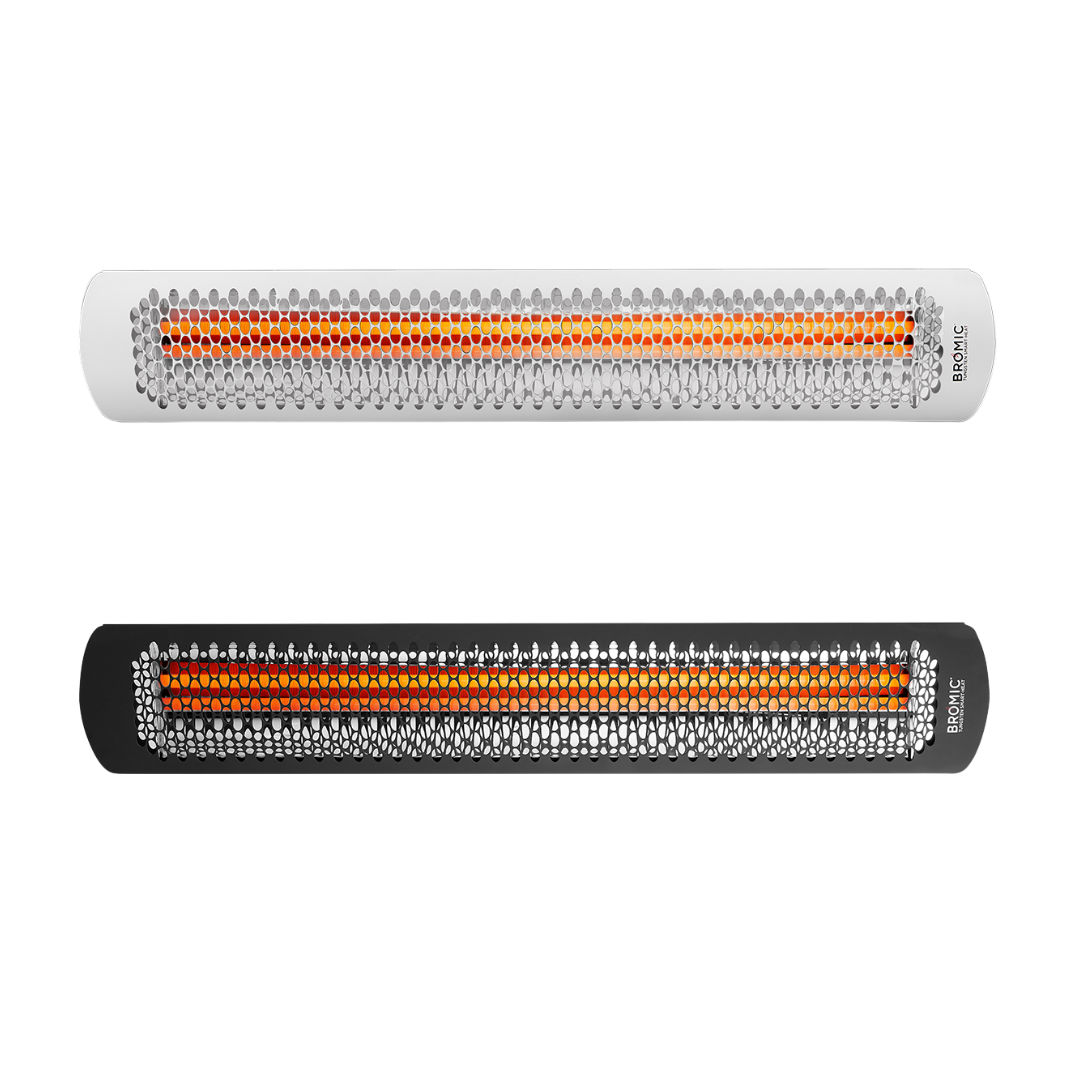

| COLOR |
BLACK | WHITE |
BLACK | WHITE |
BLACK | WHITE |
BLACK | WHITE |
| MODEL # |
- BH0420030
(220V-240V BLACK)
- BH0420040
(277V BLACK)
|
- BH0420031
(220V-240V BLACK)
- BH0420041
(277V BLACK)
|
- BH0420032
(220V-240V BLACK)
- BH0420042
(277V BLACK)
- BH0420034
(208V BLACK)
- BH0420012
(220V-240V WHITE)
- BH0420044
(277V WHITE)
- BH0420037
(208V WHITE)
|
- BH0420033
(220V-240V BLACK)
- BH0420043
(277V BLACK)
- BH0420035
(208V BLACK)
- BH0420013
(220V-240V WHITE)
- BH0420045
(277V WHITE)
- BH0420036
(208V WHITE)
|
| HEAT AREA |
65ft2 |
100ft2 |
130ft2 |
160ft2 |
| RATED CURRENT ** |
240V/8.3A
208V/9.62A
277V/7.22A |
240V/12.5A
208V/14.42A
277V/10.83A |
240V/16.6A
208V/19.23A
277V/14.44A |
240V/25A
208V/28.85A
277V/21.66A |
| MINIMUM FLOOR CLEARANCE |
WALL 72”
CEILING 96” |
WALL 72”
CEILING 96” |
WALL 72”
CEILING 96” |
WALL 72”
CEILING 96” |
| CONTROL OPTIONS |

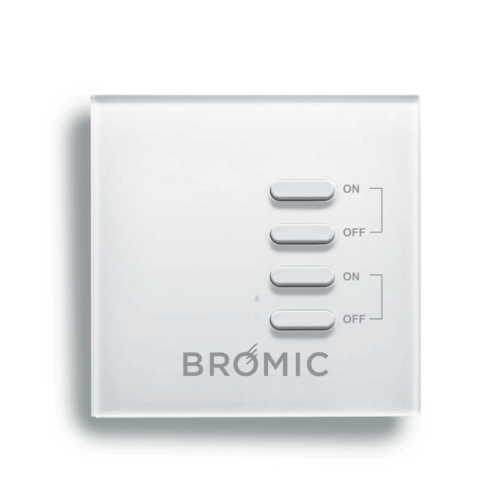

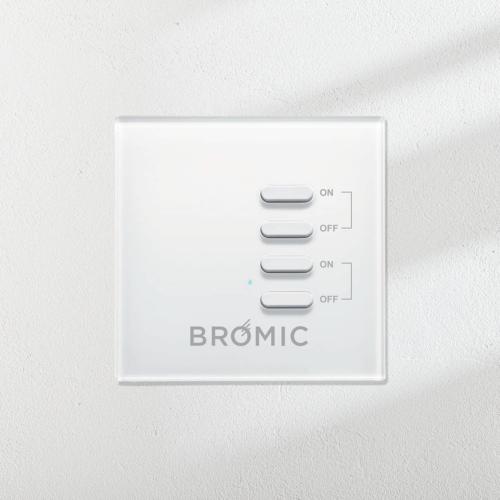

| ON | OFF |
✓ |
✓ |
✓ |
✓ |

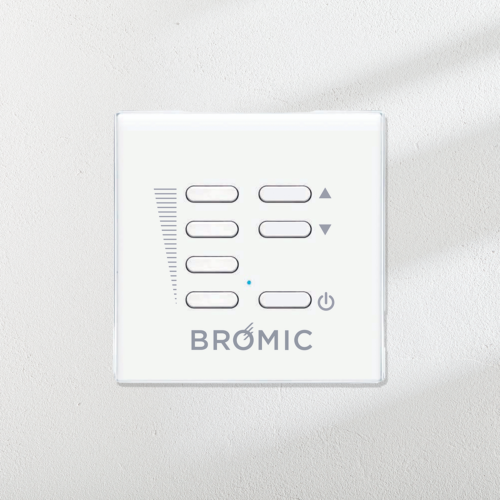

| DIMMER REMOTE |
✓ |
✓ |
✓ |
✓ |
| MASTER REMOTE * |
✓ |
✓ |
✓ |
✓ |
* Independently control up to six zones of heaters with unlimited heaters per zone from a single control. Please note a dimmer controller is required. Control operates within 100ft of heaters.
** Available in varying voltages: 240V, 208V and 277V
Downloads
Installation
Installation must be carried out by a licensed and authorized technician in accordance with local electrical codes. Please refer to our clearance requirements and consult the installation manual for further details.
Downloads
BIM & CAD Files
To download BIM & CAD files, fill out the form below:
FAQs
How is the heater controlled?

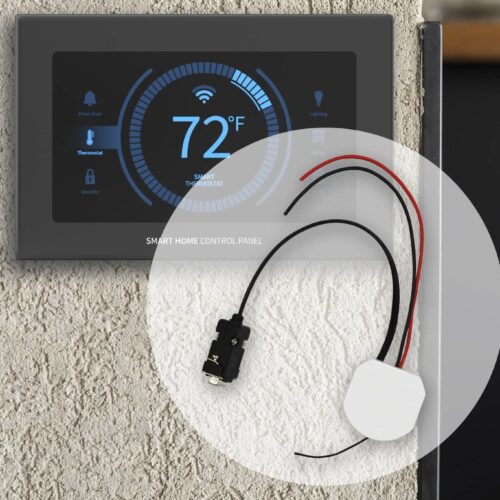

The heater can be either hard-wired or controlled with our Bromic Smart-Heat On/Off or Dimmer controls.
What clearance do we need from adjacent ceiling fans?
The heaters require a 3' minimum side clearance from combustibles.
Does the heater come with ceiling brackets?

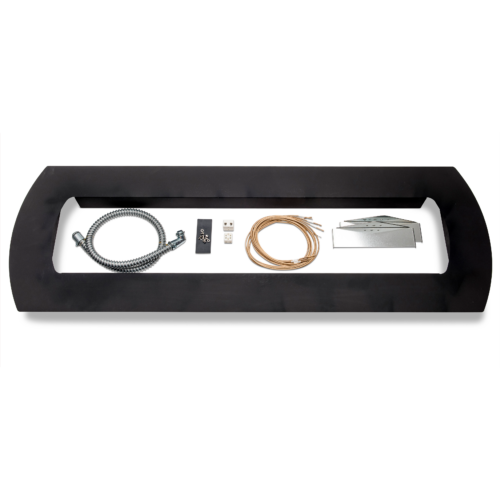

Yes. It comes with two brackets that can be used to secure the heater to either a wall or ceiling. We also offer a ceiling recesses kit for a more flush-mounted aesthetic.
Are the heaters adjustable in temperature and output?
The 4000 and 6000W versions of the Tungsten Electric come with two heating elements, which can be controlled separately to adjust the heat output as required.
Are the heaters waterproof?
The Tungsten Electric series has a IPX4 water ingress protection rating. Although our heaters are made from premium materials and engineered for longevity, we recommend that they are best mounted under cover and not directly exposed to rain, snow and salt mist to ensure they maintain their aesthetic appeal.
How do I know if I need the 208V or 220-240V electric heater version?
In North America, the terms 220V, 230V, and 240V all refer to the same system voltage level. It's primarily reserved for use in residential buildings and comes from a single phase system. A 240V service is accomplished by using two “hot” 120V standard lines. Most large electric appliances likes cook stoves, hot water heaters, and some other home appliances require this voltage. 208V, on the other hand, is from a 3 phase system and primarily found in commercial applications.
