Specifications
Reference the specification guide below to help you select the correct solution for your needs.
| MODEL |
2300W MARINE SERIES |
2300W MARINE SERIES |
3400W MARINE SERIES |
3400W MARINE SERIES |
4500W MARINE SERIES |
4500W MARINE SERIES |
| FUEL TYPE |
ELECTRIC |
ELECTRIC |
ELECTRIC |
ELECTRIC |
ELECTRIC |
ELECTRIC |
| COLOR |
BLACK |
WHITE |
BLACK |
WHITE |
BLACK |
WHITE |
| MODEL # |
BH0320015 |
BH032001 |
BH0320016 |
BH0320018 |
BH3622002 |
BH3622003 |
| HEAT AREA |
65ft2 |
65ft2 |
108ft2 |
108ft2 |
143ft2 |
143ft2 |
| RATED CURRENT * |
220-220V/9.6A
208V/11.1A** |
220-220V/9.6A
208V/11.1A** |
220-240V/14.2A
208V/16.3A** |
220-240V/14.2A
208V/16.3A** |
220-240V/18.8A
208V/21.6A** |
220-240V/18.8A
208V/21.6A** |
| MINIMUM FLOOR CLEARANCE |
Wall 72”
Ceiling 96” |
Wall 72”
Ceiling 96” |
Wall 72”
Ceiling 96” |
Wall 72”
Ceiling 96” |
Wall 72”
Ceiling 96” |
Wall 72”
Ceiling 96” |
| CONTROL OPTIONS |
2300W MARINE SERIES |
3400W MARINE SERIES |
4500W MARINE SERIES |
| ON | OFF |
✓ |
✓ |
✓ |
| DIMMER REMOTE |
✓ |
✓ |
✓ |
| MASTER REMOTE *** |
✓ |
✓ |
✓ |
*Available in varying voltages: 220/240v and 208V.
**208V version recommended for land-based commercial applications only and not Lloyd’s Register Certified.
***Independently control up to six zones of heaters with unlimited heaters per zone from a single remote. Dimmer controller required. Control operates within 100ft of heaters
Downloads
Installation
Installation must be carried out by a licensed and authorized technician in accordance with local electrical codes. Please refer to our clearance requirements and consult the installation manual for further details.
Downloads
BIM Files
To download BIM files, fill out the form below:
FAQs
Do the Platinum Electric Marine heaters come with a controller?
No, the controllers can be purchased as an additional accessory.
Can I install the Platinum Electric heater myself?
No, the heater must be installed by a licensed technician.
What is radiant heat?
Radiant heat works like the sun. Instead of heating the air around you, it heats people and objects. This makes radiant heat a more effective outdoor heating source, as it is less likely to be affected by the wind.
Are the heaters waterproof?
Our Platinum Electric Marine heaters are made from premium 314 stainless steel and IPX5 rated, and therefore water-resistant (low pressure water jets). However, Bromic does recommend that they are best mounted under cover and not directly exposed to rain and salt mist to ensure they maintain their aesthetic appeal.
What mounting options are available?

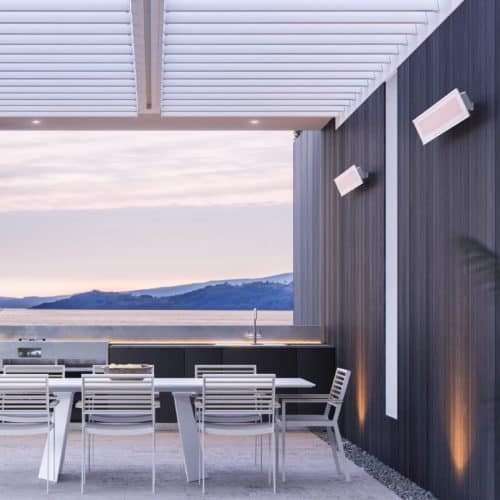

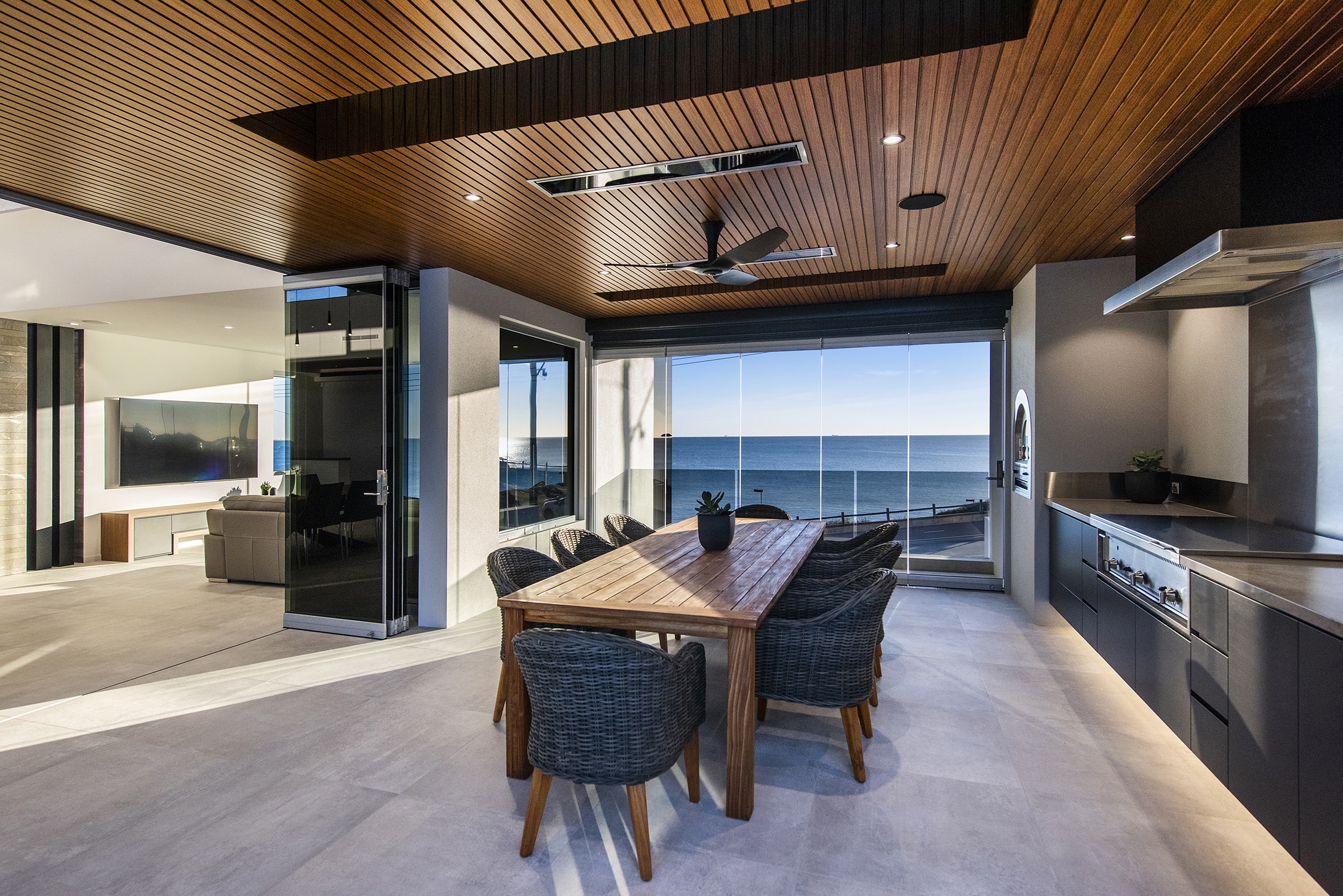

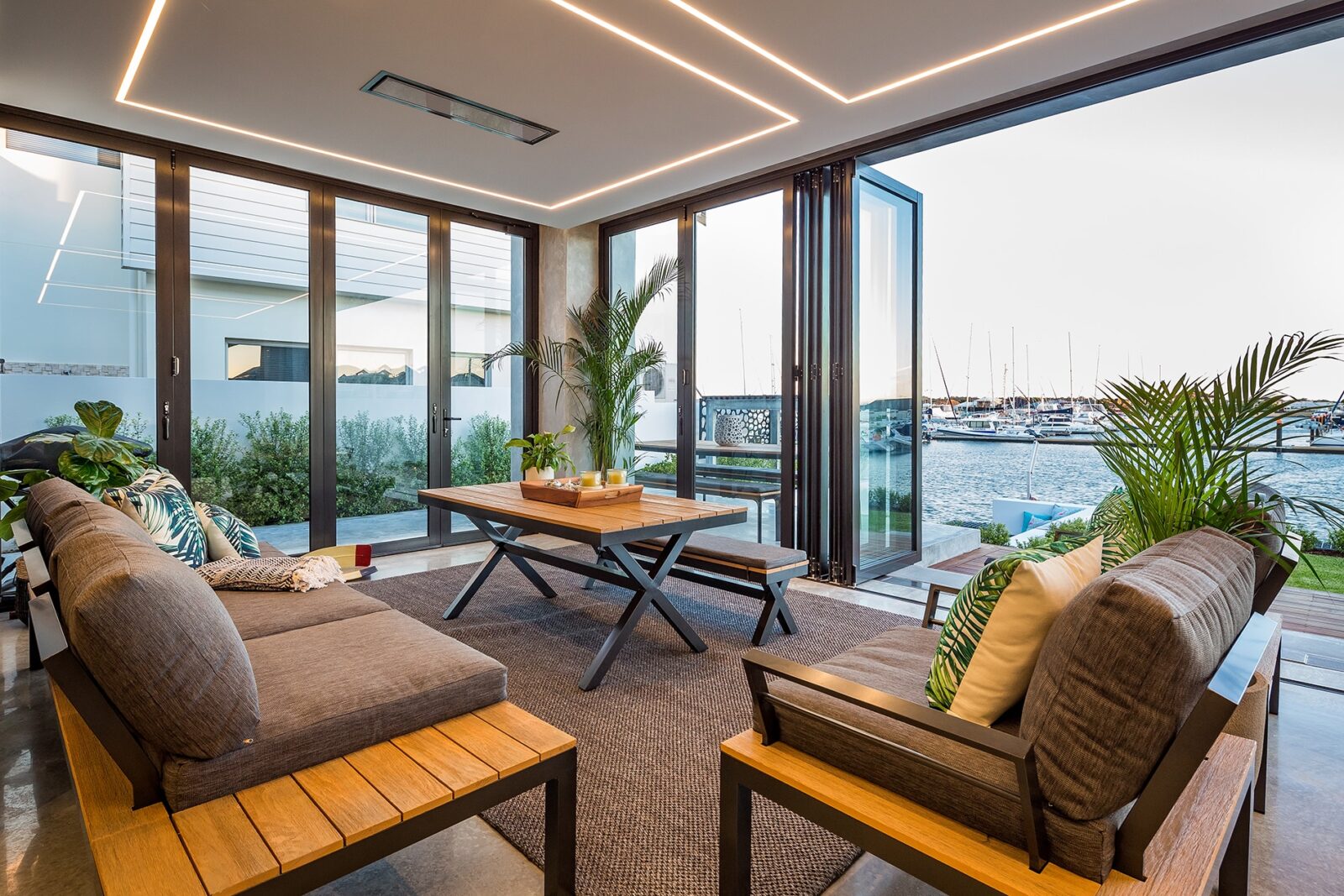

The heaters can be either wall mounted, pole mounted or recessed into the ceiling. Each heater is supplied with an 8" stainless steel pole. Recessing kits and longer poles for high ceilings can be ordered separately. Please refer to our instruction manual or contact our friendly design team to find out which installation and height is right for you.
