Bromic Controls
NEW! Affinity Smart-Heat™ Controller Collection
Bromic’s best-in-class controls have gotten an upgrade with our new, Affinity Smart-Heat™ Collection. These controllers, enabled by Wi-Fi and Bluetooth connectivity, offer more heater channels than ever before. They seamlessly integrate with our state-of-the-art app, allowing users to have complete and customized control over their comfort.
Affinity On/Off Series
The Affinity On/Off series allows for connected Platinum and Tungsten Collection gas or electric Bromic Heaters to be turned on or off at full power capacity – providing straight forward function and usage of your outdoor heater.
Affinity Dimmer Series
Suitable for Bromic’s Platinum and Tungsten Collection electric heaters, the Affinity Dimmer series instantly and precisely adjusts heat output down to 1% increments for custom comfort.
COMING SPRING 2025
Affinity Eclipse Series
Created for our Eclipse Collection, the Affinity Eclipse Series offers complete incremental control over not only the heat, but the LED light rail output as well, creating the perfect ambience – every time.
The Affinity Difference

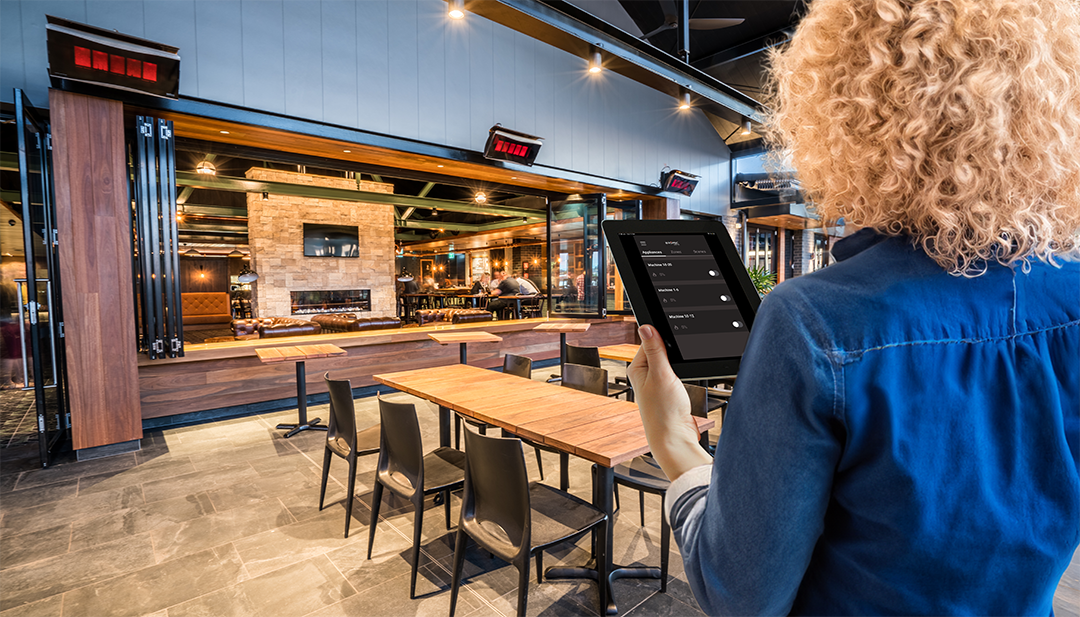

Tap Into Comfort
Get more from your Bromic heaters than ever before. Our Affinity Smart-Heat™ Controls pair seamlessly via Wi-Fi, Bluetooth or optional Ethernet connection to our new Bromic Heating app, where users have complete, customizable control over their comfort in the palm of their hand:
- Complete control of heat output with On/Off and Dimming functionality
- Multi-heater management of unlimited connected controllers
- Create heater grouping within zones
- Timer & schedule settings
- Voice control integration with Amazon Alexa & Google Home
- Manage multiple sites from one app
- Admin control with multi-user management
Manual Wall Switch Series
Available in both single and double channel indoor and outdoor models, the manual wall switch series offers convenient on/off capabilities, suitable for any user.
Affinity Expansion Board
Suitable for Bromic’s 1 and 2 channel OnOff and Dimmer models, the Expansion Board accessory option allows for seamless ethernet integration for a full-proof connection to your outdoor heaters. Complete with 0-10V connections for your Home Automation System or Business Management System.
Download the Affinity Controls Catalogue
Bromic’s Legacy Remote Controllers
On/Off Controller
Bromic’s independent ‘On/Off’ outdoor heater controller will let you manage up to two electric or four gas heaters across two separate circuits from up to 100ft away via the handheld wireless remote.
Dimmer Controller
Move beyond the base-model wireless controller with the Bromic Dimmer Controller. Suitable for our electric heaters, the dimmer control provides the ability to precisely adjust the electric heat output in 1% increments, or quickly jump by 25% increments, making it an ideal outdoor heater switch for custom comfort.
Eclipse Dimmer Controller
Set up the perfect ambience with the Bromic Eclipse Dimmer Control and wireless remote. Suitable for our Eclipse Pendant and Portable series, the Bromic Eclipse Dimmer Remote can quickly dim the lighting in 1% increments and the heating output (0%, 33%, 66%, 100%) to create the perfect ambience – every time.
Master Remote
Our Bromic Master Remote is invaluable for larger venues. Offering user-programmable customization, this outdoor heater remote gives you full control over an unlimited number of heaters in up to 6 groups within its 100ft range when paired with our Dimmer Controller.
Smart-Heat Link
Pair Bromic’s heating control options with the Bromic Smart-Heat Link to create a seamless communication between Bromic outdoor heaters and your smart home controls technology. The Bromic Smart-Heat Link requires a RS232 port and is compatible with the leading home automation systems on the market, such as Control 4, Crestron. Lutron, Nomad and many more!
Common Questions about the Bromic Controls
Explore the extensive Q&A topics about Bromic Controls below to gain valuable insights that cater to your specific outdoor heating needs. For customized assistance, don’t hesitate to reach out to Bromic’s team of heating experts who stand ready to craft a tailored solution for your specific needs.
Single Channel Controls are rated for 6kW maximum, Dual Channel controls are rated for 12 kW maximum. Both Single and Dual Channel options can control multiple heaters within their maximum capacity.
- Examples:
- A Single 6 kW On/Off Control is compatible with 2 Platinum 2300W Electric Heaters or a single Tungsten 6 kW.
- A Dual 12 kW Dimmer Control is compatible with 2 Tungsten 6000W Electric Heaters.
- A Single 6 kW On/Off Control is compatible with up to 10 Gas Heaters, operating as a single block.
The Affinity Collection of controls are App based only and do not ship with a physical remote.
The Affinity Collection can be mounted indoors or outdoors in well-ventilated areas and do not need cover. Please check the product literature for specific clearances and mounting recommendations.
Yes, they are IPX5 rated and are determined to be rainproof.
No, controls are not included. Bromic offers a variety of control options for your application. Please visit Bromic.com/controls for more information.
The Bromic App includes both timer/scheduling function. Radiant heat does not apply to thermostat control.
The Bromic APP allows users to control their heaters via Wi-Fi via a smart device so heaters can be operated from anywhere the users has an internet connection. With Bluetooth connectivity, you will need to be within 30ft of the controller box.
Yes, the Affinity Controls are compatible with Alexa and Google Home.
Yes, the Affinity Controls can be integrated with both Home and Business automation systems with the addition of the Smart-Heat Expansion Board using 0-10v control. The expansion board is built into the 5-Channel controllers.
This function is available in different settings. Firstly, when you turn on an appliance, you can also set a timer off interval. You set this each time the heater is turned on and it will then countdown to the interval duration and automatically switch the appliance off. Set this function by clicking the appliance name to go to the detailed screen and setting the timer off internal at the bottom of the screen.
Alternatively, you can set the timer off delay using schedules. This feature is only available to WiFi connected appliances.
The serial number is represented as a 14 digit code (eg CONF2C23080005). The digits will be different for each type of controller. The serial number is printed on the product label attached to the controller. It can also be located via the menu on the Bromic Smat-Heat App, under Site configuration-> Edit Site. All the controllers will be listed and within each controller setting you can identify the connected heaters.
For additional help with your new Affinity Controls, contact Bromic’s Technical Support team.
To adjust the lighting and heat output of your Bromic Eclipse heater, you can use the Eclipse dimmer controller, providing you with full control over the ambiance of your outdoor space.
Bromic’s controllers are hardwired directly to the outdoor heaters, while the included wireless remote is able to operate the heater within a range of up to 100ft from the controller box.
The Wireless Master Remote from Bromic is compatible with all of our electric heaters, as long as they are wired to a dimmer controller. This remote allows you to pair to multiple dimmer controllers to manage an unlimited amount of heaters, making it ideal for larger outdoor spaces or commercial applications.
Yes, this is possible via a home or building automation system. We offer the Bromic Smart-Heat Link, which can connect to a building automation system via RS232 plugin.
You can control two heaters if they’re not exceeding 6800W (so, two 3400 Platinum Electric or two 3000W Tungsten Electric heaters). Please also note, that if two heaters are connected to a single dimmer controller, they cannot be controlled independently. To control individual heaters independently, you will need to install two separate controllers.
The Bromic On/Off Controller and remote can be paired with any Tungsten or Platinum fixed gas or electric heaters.
Complimentary Outdoor Heating Design Service
Not sure which heaters are right for your outdoor space?
Let us help with our complimentary technical design service. Our team of designers will be able to advise which heater is right for your space and provide a customized design layout.
Design Your Space
