Specifications
Please reference the specification guide below to help you select the correct solution for your needs.

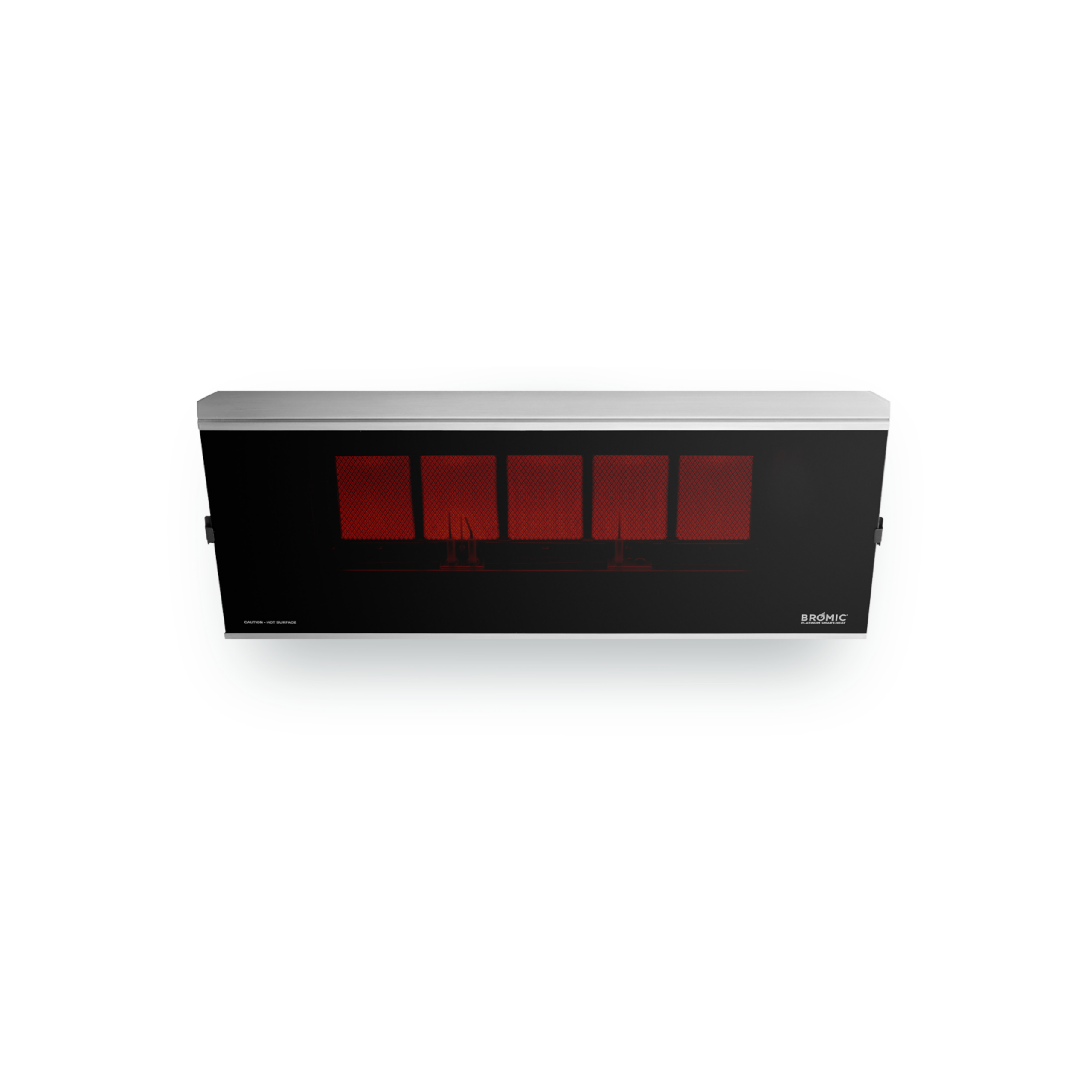

| MODEL NUMBER |
300 SERIES |
500 SERIES |
300 SERIES |
500 SERIES |
| FUEL TYPE |
LPG |
LPG |
NG |
NG |
| COLOR |
BLACK | STAINLESS |
BLACK | STAINLESS |
BLACK | STAINLESS |
BLACK | STAINLESS |
| MODEL # |
BH0110002-1 |
BH0110004-1 |
BH0110001-1 |
BH0110003-1 |
| HEAT AREA |
160ft2 |
215ft2 |
160ft2 |
215ft2 |
| RATED CURRENT |
110V/2A |
110V/2A |
110V/2A |
110V/2A |
| MINIMUM FLOOR CLEARANCE |
96” |
96” |
96” |
96” |
| OUTPUT |
23,600 BTU |
39,800 BTU |
23,600 BTU |
39,800 BTU |
Downloads
Mounting Options

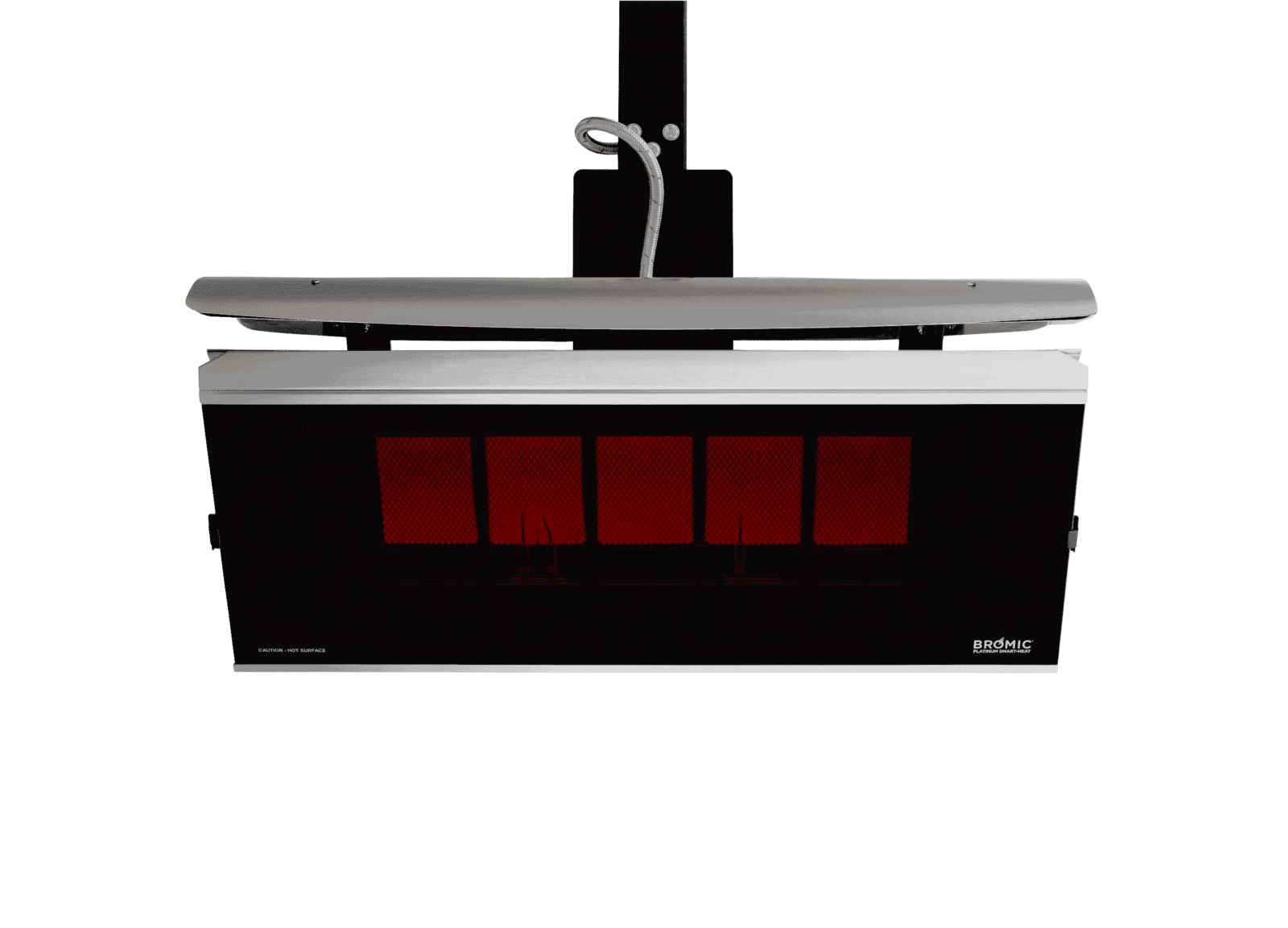

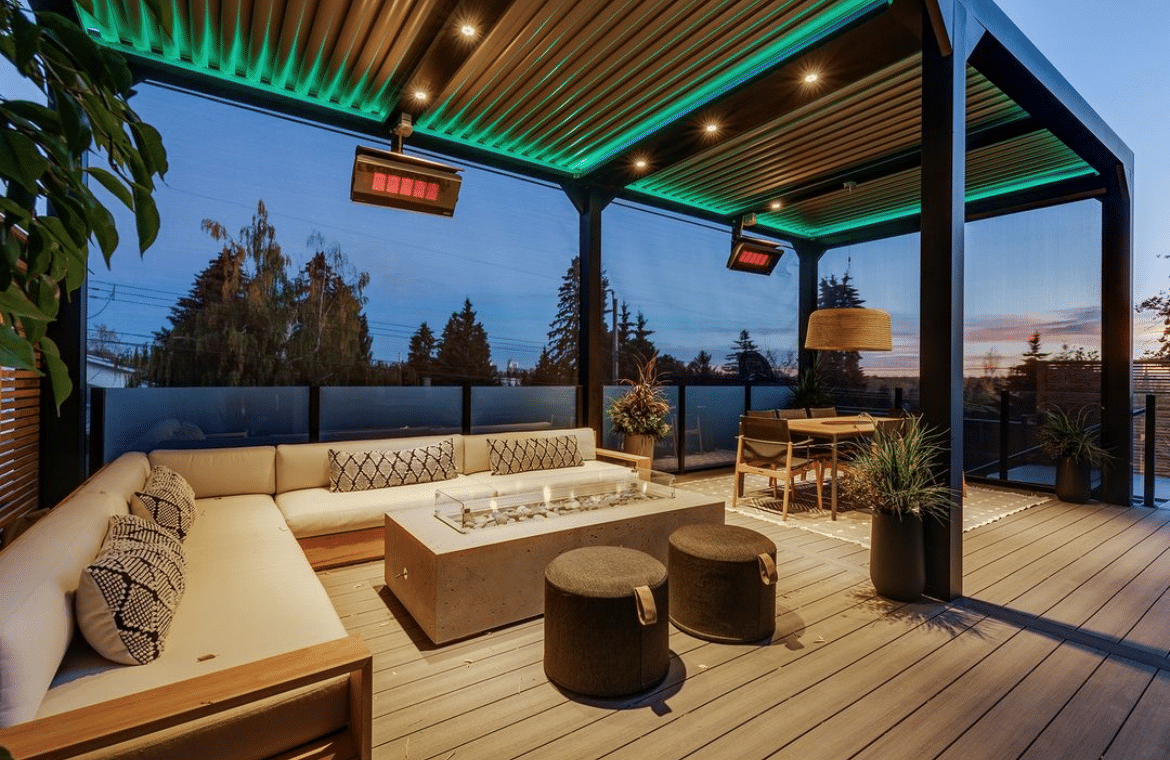

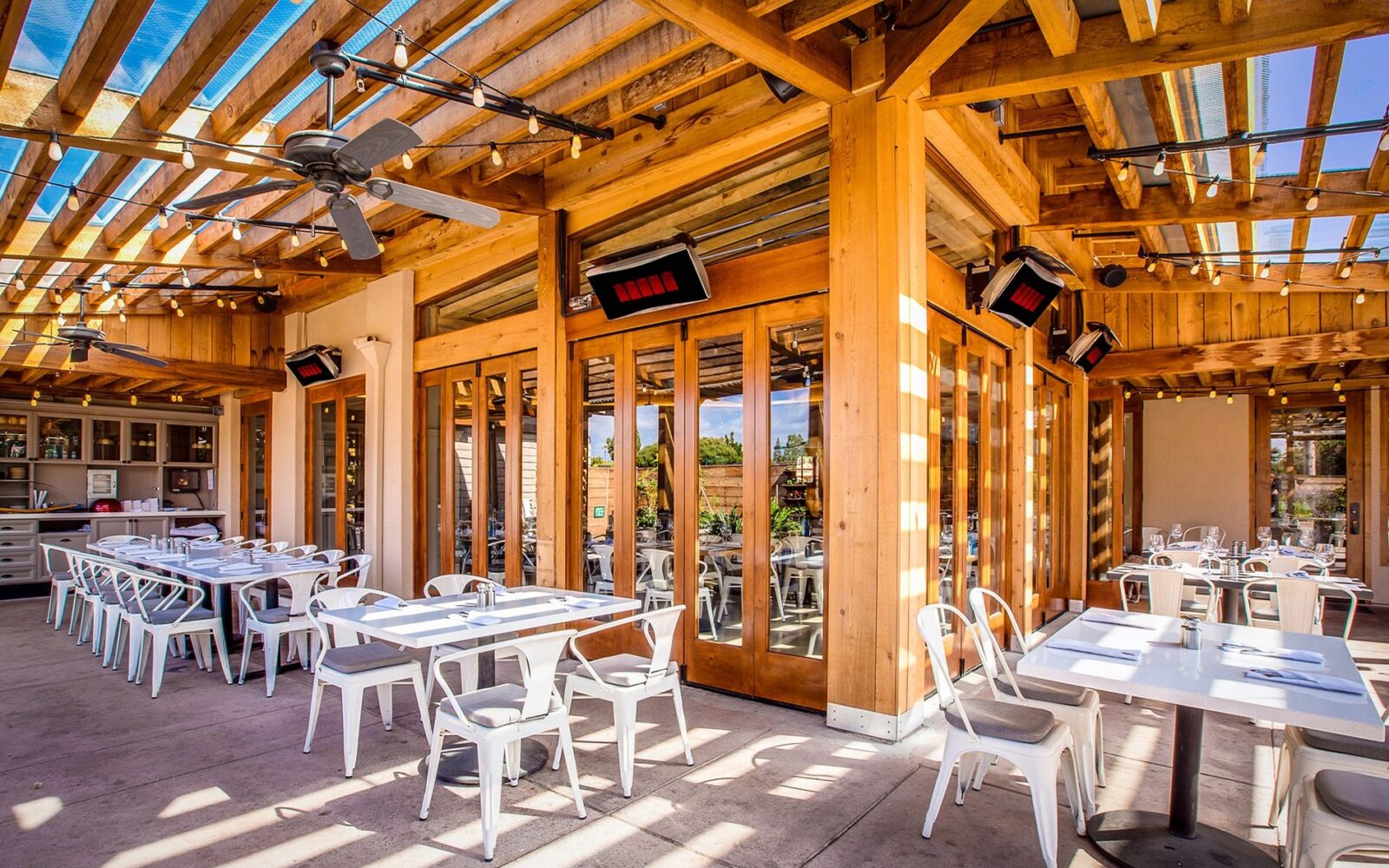

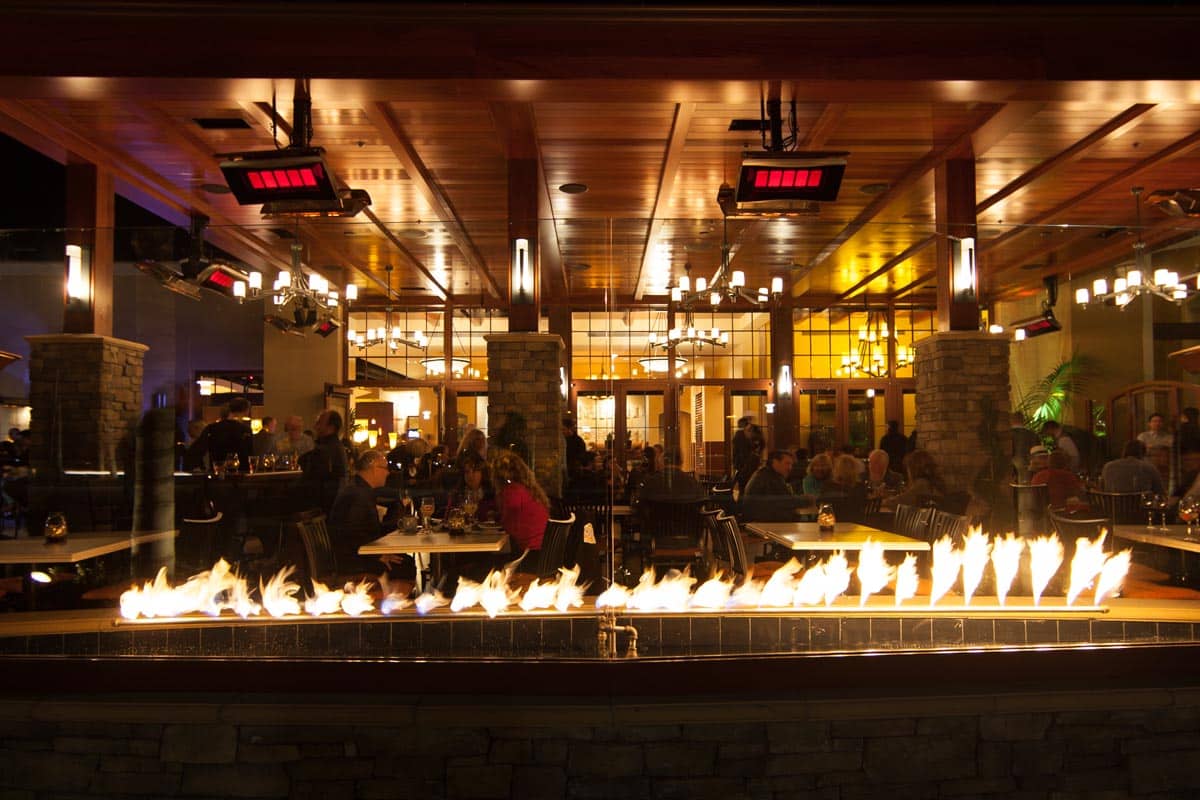

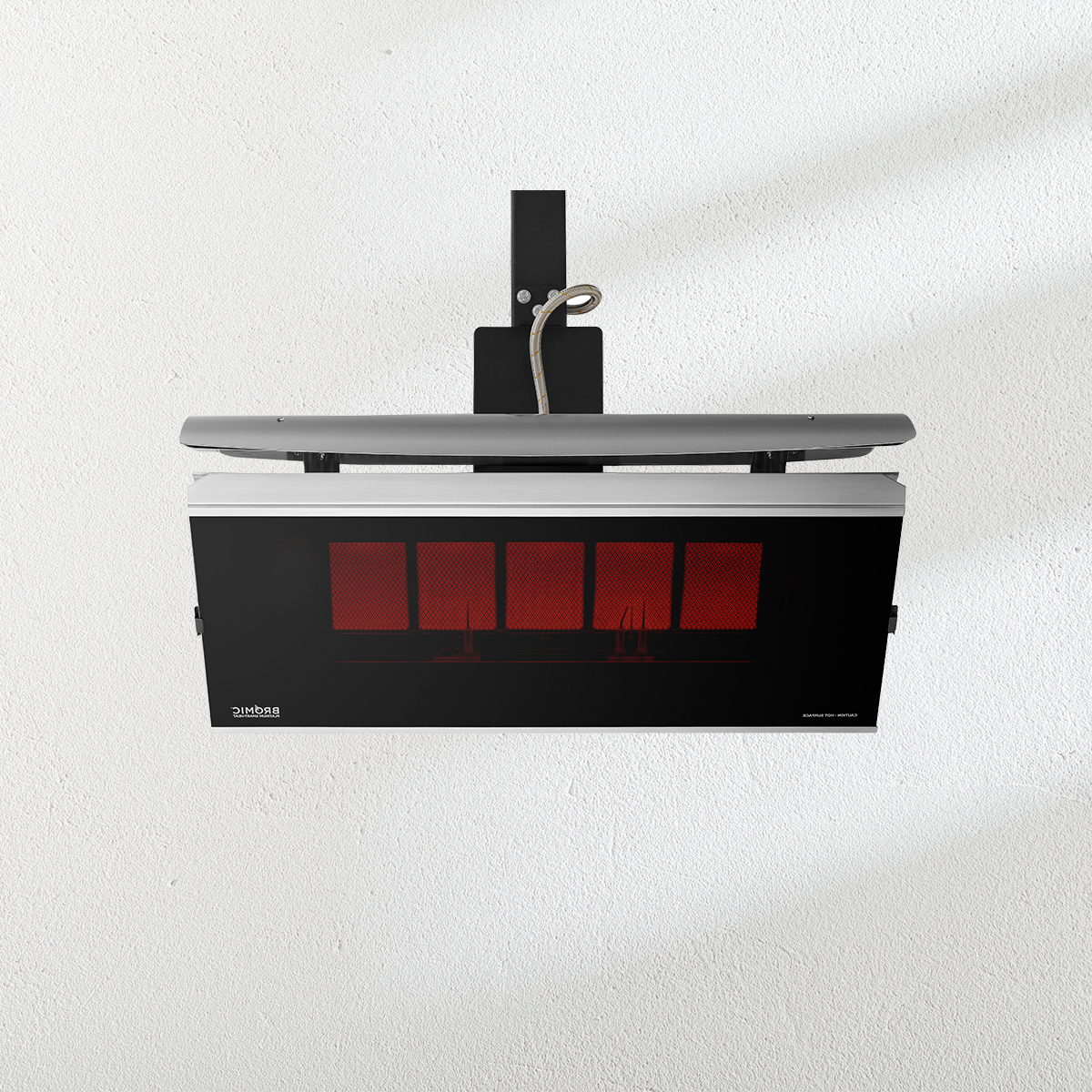

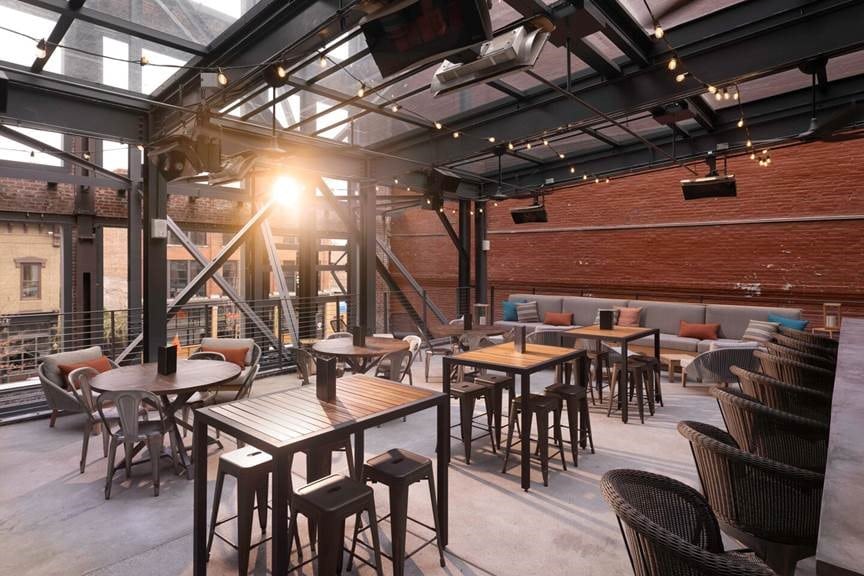

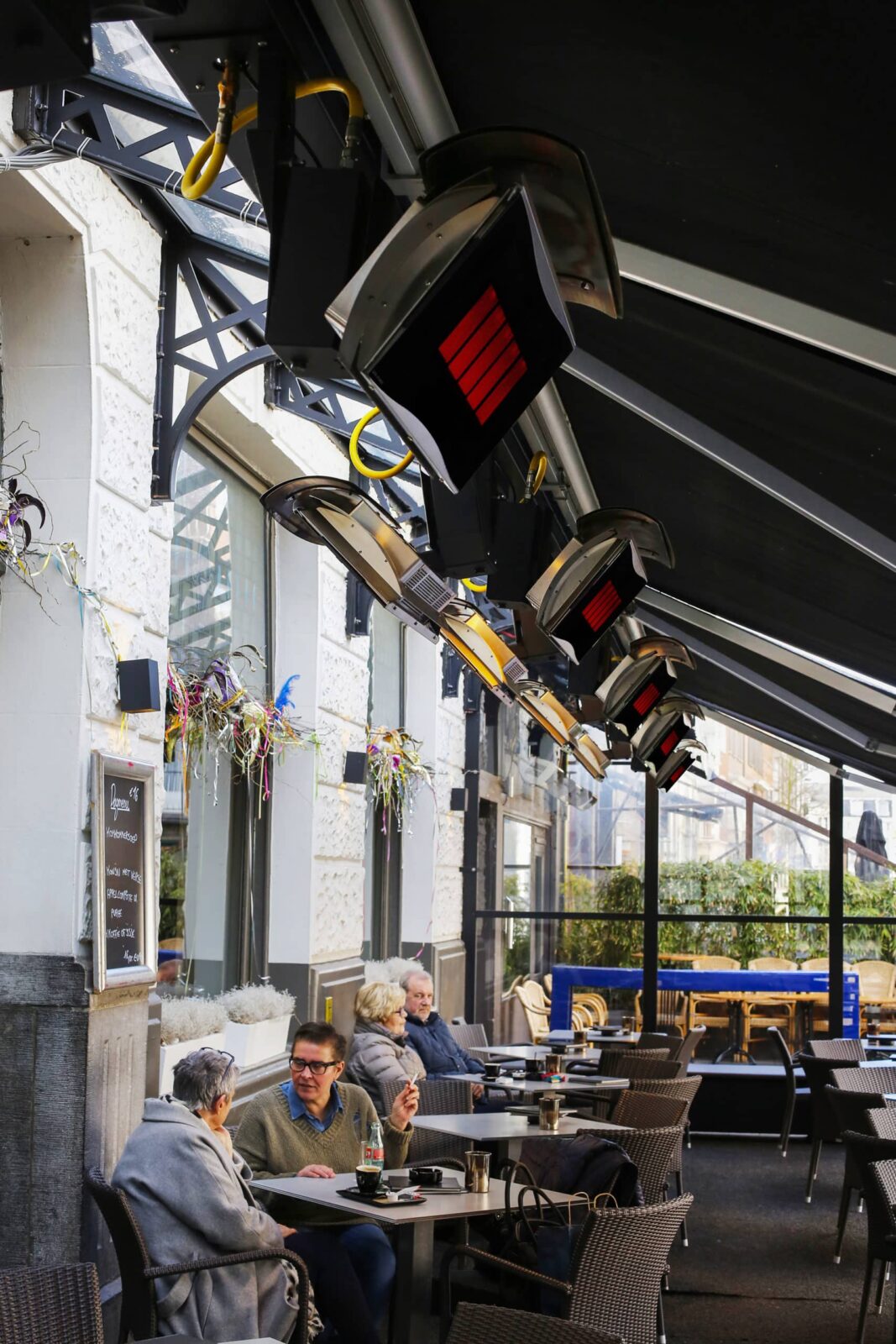

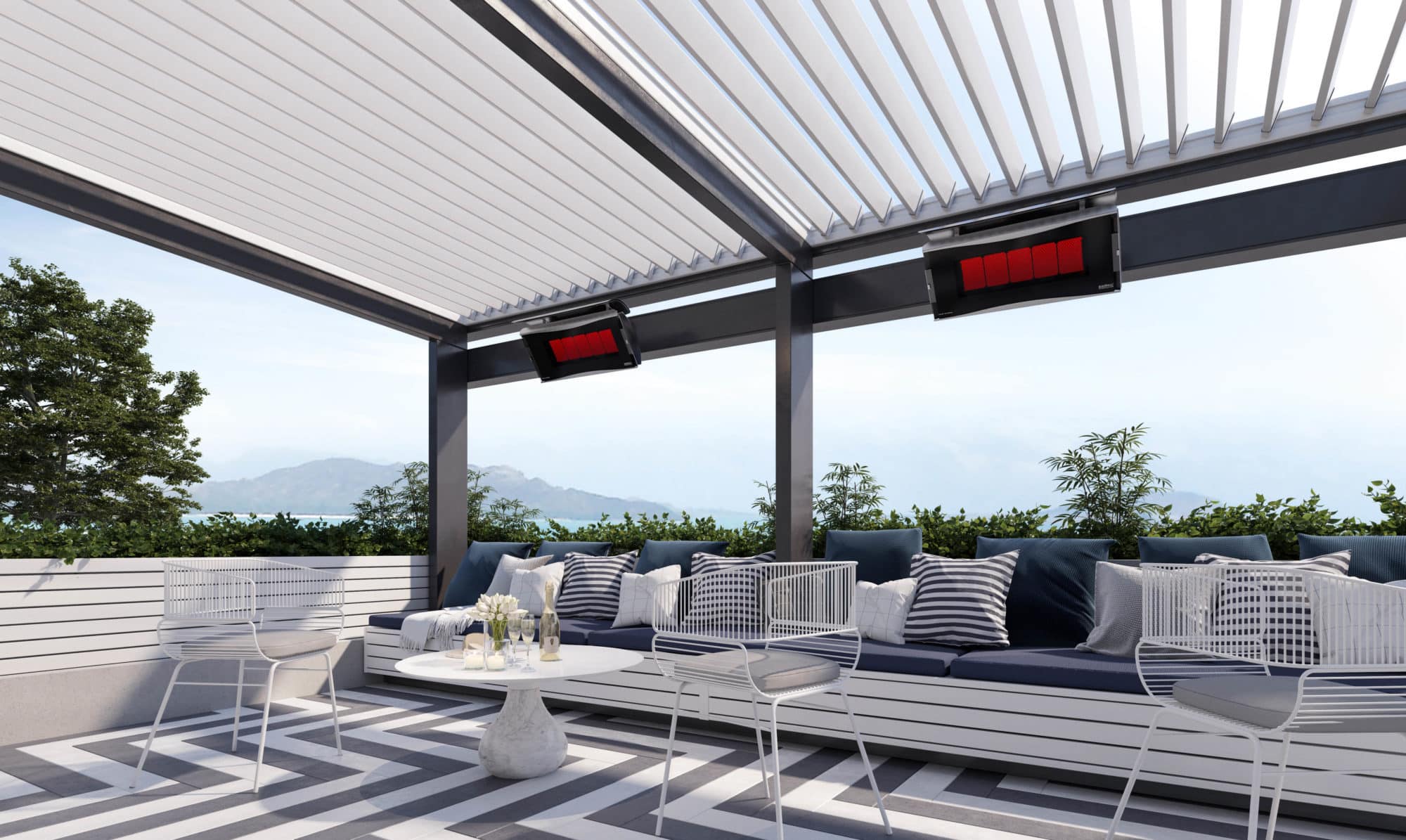

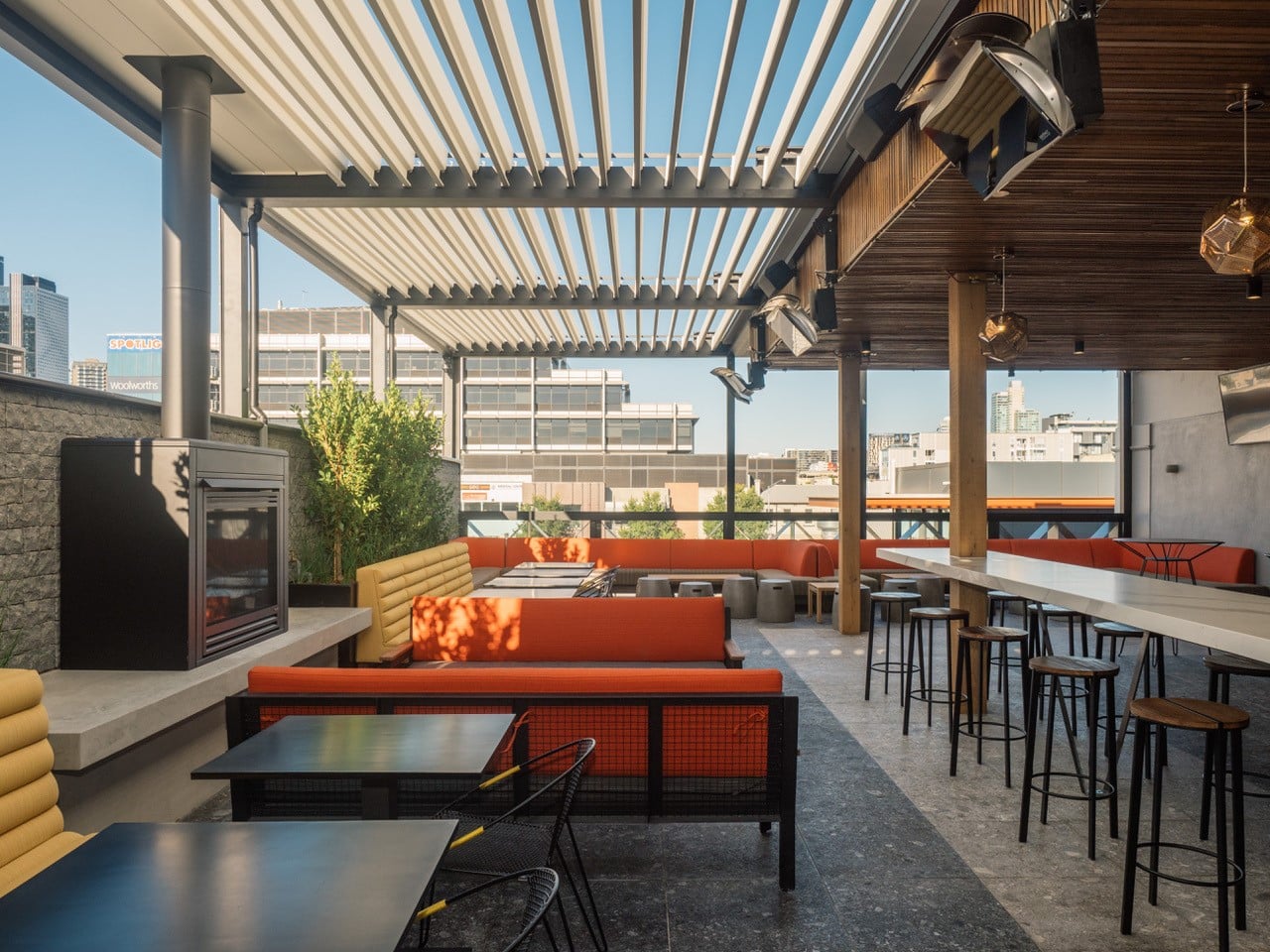

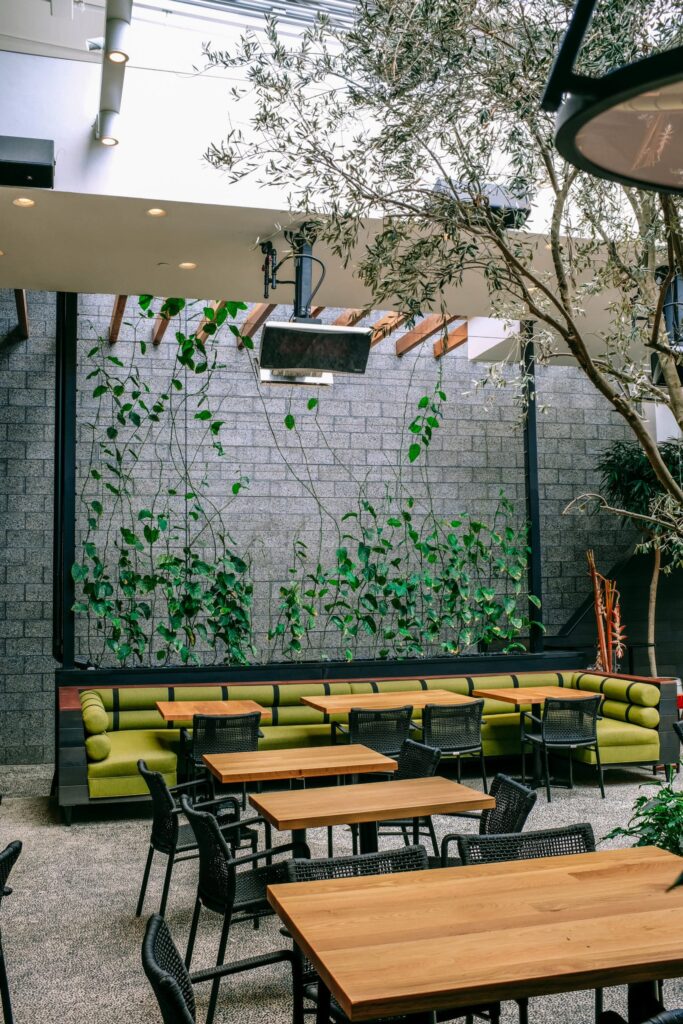

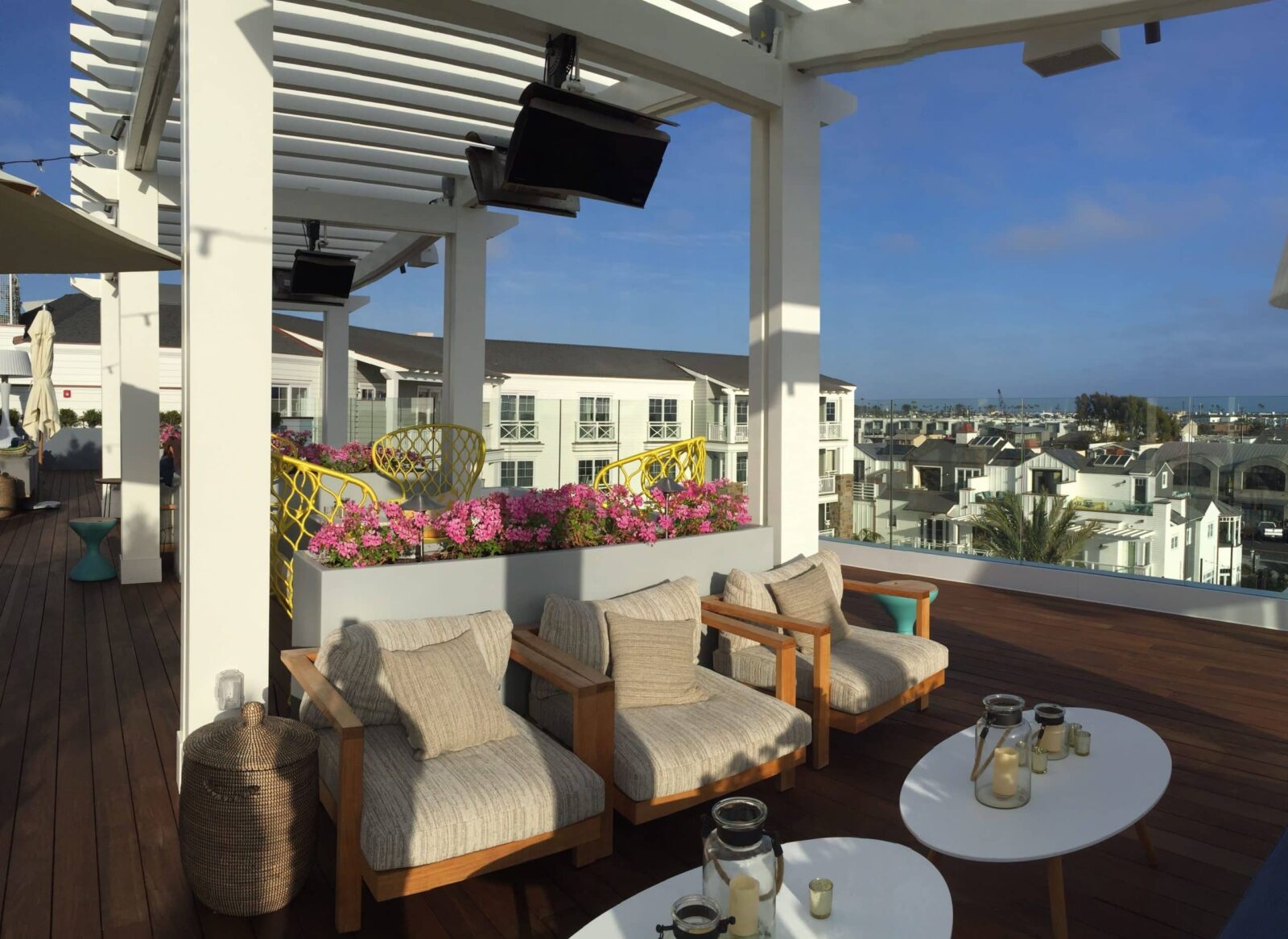

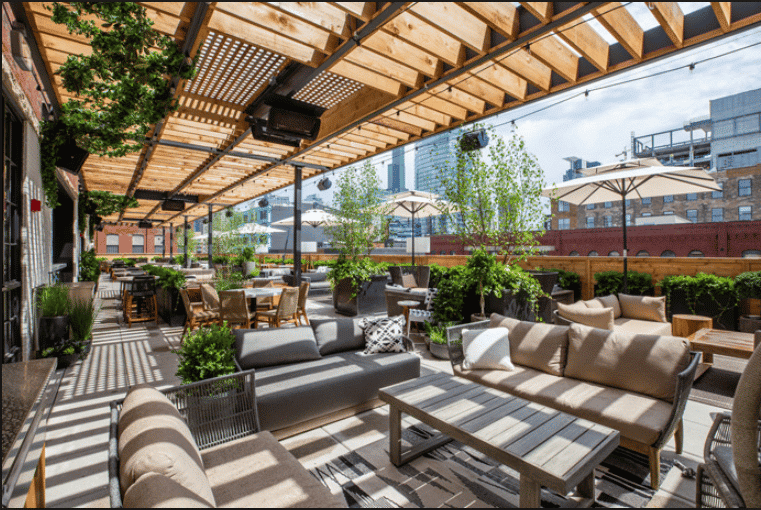

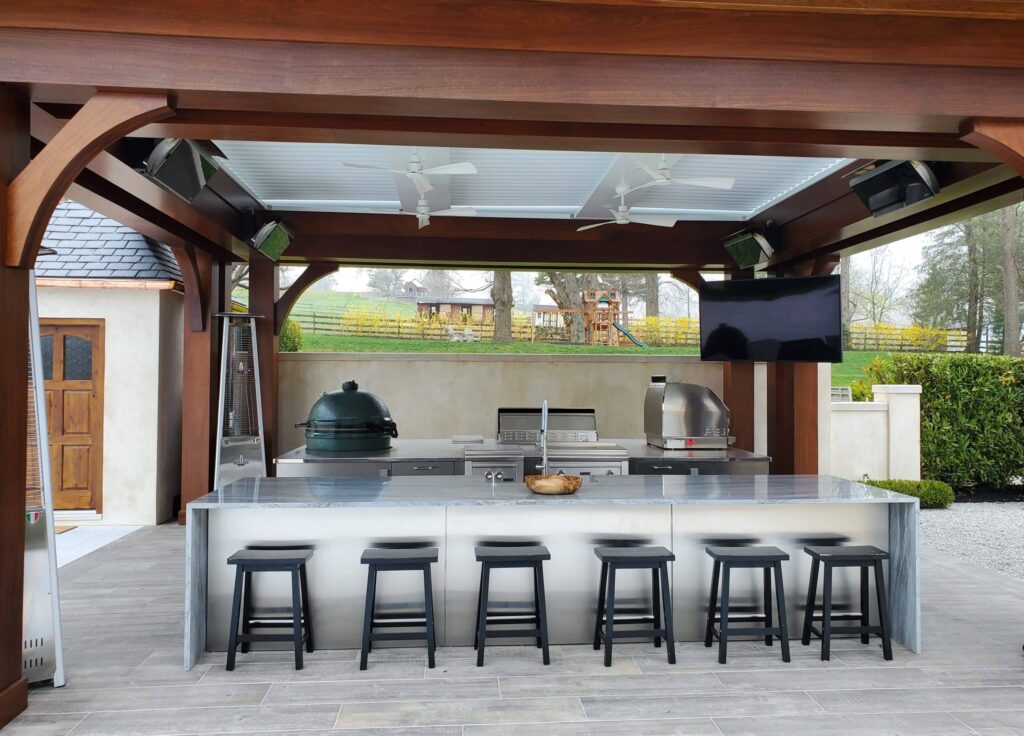

Bromic Platinum Gas heaters can be wall-mounted or hung from the ceiling (with optional Bromic Ceiling Pole Mounts). The optimum height is 8 feet from the floor to the bottom of the heater. If the distance above the heater is less than 42 inches or if the heater will be open to the elements, we advise to use a Bromic Heat Deflector.
Installation
Installation must be carried out by a licensed and authorized technician in accordance with local building codes. Please refer to our clearance requirements and consult the installation manual for further details.
Downloads
BIM Files
To download BIM files, fill out the form below:
FAQs
What is supplied with the mounted gas heaters?
All our Smart-Heat gas heaters come with wall mount brackets. Ceiling poles, deflectors and controllers can be purchased as additional accessories.
Can I install the heater myself?
No, our Bromic Smart-Heat gas heaters need to be installed by a licensed technician.
Do the gas heaters require an electrical supply?
Yes, these heaters have an electric ignition which requires an electrical supply.
How can I control the heater?
We recommend adding the Bromic On/Off controller and wireless remote, so the heater can be turned off and on from the comfort of your home. Alternatively, the heater can also be controlled via a standard wall switch.
Can I adjust the heat output on the gas heaters?
Our gas heaters are on/off only. If you're looking for a dimmable option, the we would recommend our Bromic electric heaters, which allow for more precise control over the heat output.

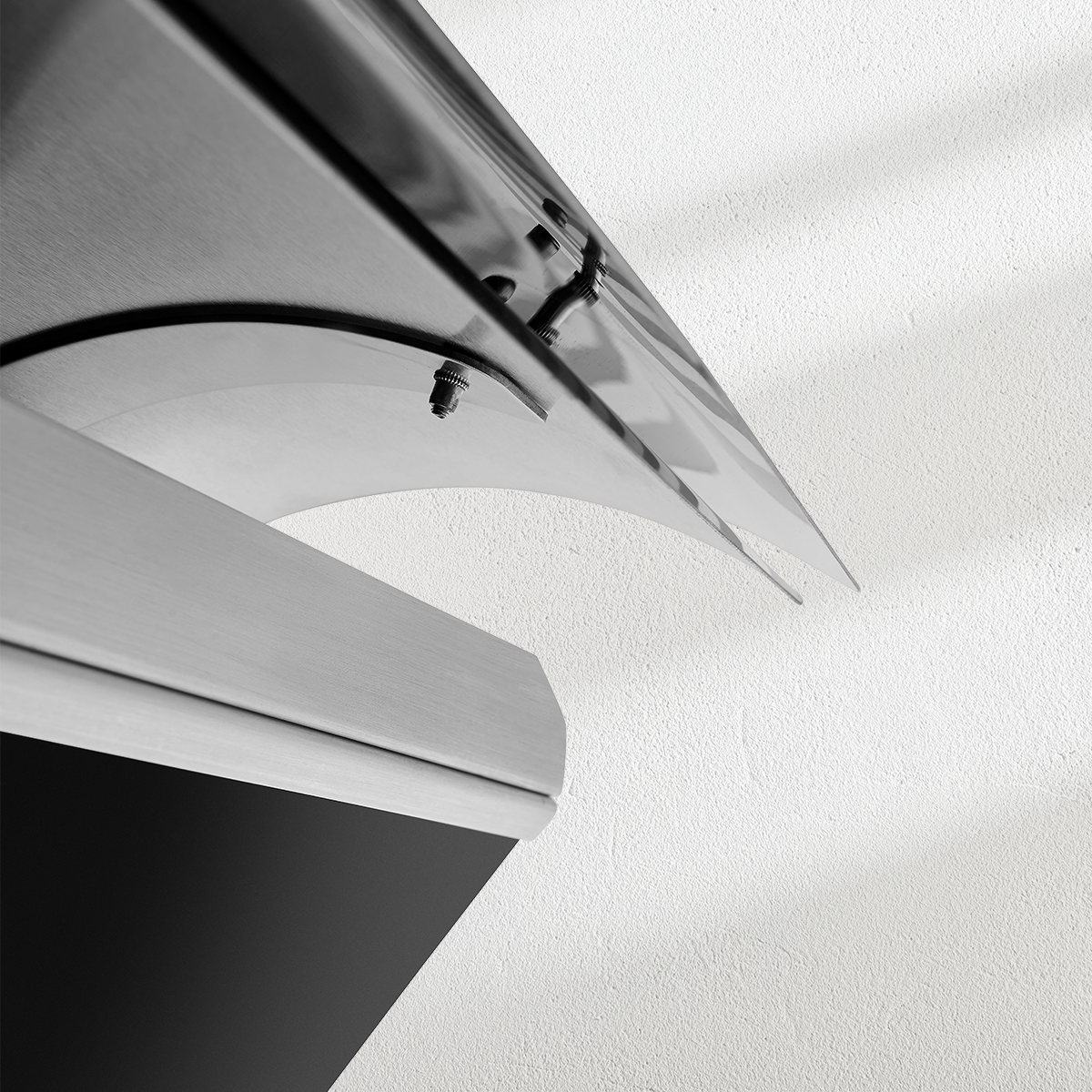

Is the heater supplied with a heat deflector
No. Heat deflectors are available as an additional accessory.
Does the heater come with a cover?
No, we do not offer cover for our fixed installed heaters as these present a fire-hazard as there is a risk the heater might get accidentally switched on with the cover on.
Can this heater be connected to a smart home or building automation system?
Yes, the heater can be connected to smart home and building technology, provided the system has been fitted with a RS232 port. For this, you require our On/Off Controller and our Bromic Smart-Heat Link RS232 plugin.
